Surface System Flow Diagram

Primary Components

  • High-Pressure Pump: Sends conditioned power fluid downhole.
  • Return Line: Carries commingled produced fluids and power fluid to the surface.
  • Separation System: Removes gas, solids and water before reconditioning the power fluid.
  • Filtration Unit: Removes solids prior to recirculation.
  • Tank or Vessel: Stores cleaned power fluid.
  • Pulsation Dampener: Reduces pressure fluctuations from the surface pump.
  • Flowline to Facility: Sends produced fluids downstream after separation.

Flow Sequence

  1. Clean power fluid is drawn from the storage vessel.
  2. The high-pressure pump raises power fluid to the required pressure.

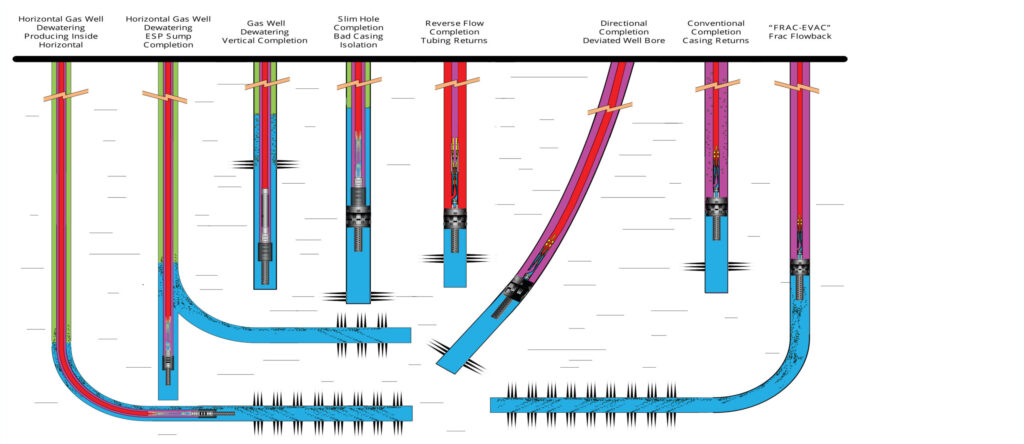

  3. The power fluid enters the wellbore and energizes the jet pump.
  4. The commingled production stream returns up the tubing or annulus.
  5. Fluids enter the separator where gas and solids are removed.
  6. Produced fluids exit to the facility.
  7. The cleaned power fluid is filtered and returned to the storage vessel for reuse.

Operational Notes

  • Maintain clean power fluid to protect nozzle and throat erosion.
  • Monitor separator performance to minimize gas carry-under.
  • Check dampener settings to reduce vibration on surface pumps.
